Numericals on AC Circuit Containing R and C
Class-12 Nootan ISC Physics Solution Ch-12 Alternating Current.

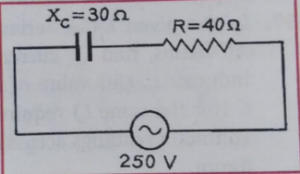

Que-28: In the given AC circuit, find out the potential difference across the (i) resistor, (ii) capacitor.

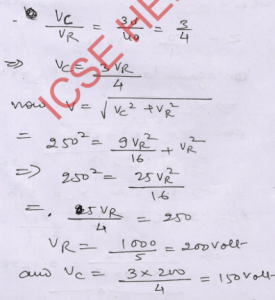

Ans-
Que-29: A 5 V AC source is connected to a C-R circuit. The PD across C is 3 V. Find the PD across R.
Ans- V = √(Vc² + VR²)
=> 5 = √(3² + VR²)
=> VR² = 4 volt
Que-30: Find the impedance of the given circuit for
(i) direct current, (ii) alternating current of frequency (10 / pi) kHz.
Ans- (i) XC = 1/2πfC
for direct current f = 0
=> XC = ∞
∴ Z = ∞
again for AC
XC = 1/2πfC = 1/2π x 10/π x 10³ x 2 x 10^-6 = 25 Ω
∴ Z = √(Xc² + R²)
=> √(25² + 20²) = 32 Ω
Que-31: A capacitor in series with a resistance of 30 Ω is connected to AC mains. The reactance of the capacitor is 40 Ω. Calculate the phase difference between the current and the supply voltage.
Ans- tan φ = XC/R = 40/30
=> φ = tan^-1 (4/3)
Que-32: An alternating emf of 100 V-50 Hz is applied across a 10 µF capacitor and 100 Ω resistor in series. Calculate the reactance of the capacitor, the current flowing and the average power supplied.
Ans-
Que-33: A 50 W-100 V lamp is to be used at 200 V-50 Hz electric mains. Find the capacitance required to be connected in series with the lamp.
Ans- i = 50/100 = 0.5 A
VC= √(V² – VR²)
=> √(200² – (100)²) = 100√3
XC = VC/i = 100√3/0.5 = 200√3 Ω
XC = 1/2πfC
=> C = 1/XC.2πf
=> 1/(200√3 x 2 x 3.14 x 50) = 9.2 μF
— : End of AC Circuit Containing R and C Numerical Class-12 Nootan ISC Physics Solution Ch-12. :–
