Miscellaneous Numericals on DC Circuits and Measurements Class 12 Physics
Que-39. Calculate in the given combination of four resistors : (i) equivalent resistance between points A and B, (ii) PD between A and B, (iii) currents in the various resistors.
Ans-39 (i) equivalent resistance = 12×9/12+9 = 12×9/21 = 36/7 Ω
(ii) PD across A and B = V = iR = 36/7 x 2 = 72/7
(iii) again I1/I2 = 9/12 = 3/4
I1 = 2 x 3/7 = 6/7 Amp
and I2 = 2 – 6/7 = 8/7 Amp

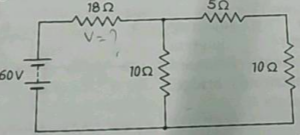

Que-40. Calculate the voltage drop across the 18 Ω resistor in the given circuit. The emf of the battery is 60 V.
Ans-40 Resistance of the circuit = 18 + 15×10/15+10
=> 18 + 150/25 = 24 Ω
Current in circuit = 60/24 = 2.5 A
PD across 18 Ω = 18 x 2.5 = 45 V

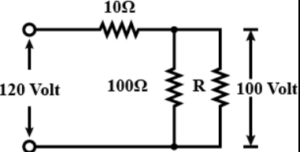

Que-41. Find, in the given circuit, currents in 10 Ω and 100 Ω resistors and the value of R.
Ans-41 Voltage across 10 ohm
120-100 =20V
current in the circuit
=20/10
= 2 amp
total resistance of parallel combination
=> Rx100/R+100
V = i x Rx100/R+100 = 100 V
=> 2 x Rx100/R+100 = 100

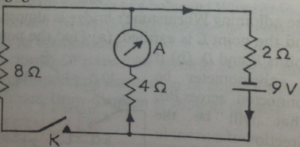

Que-42. What the ammeter A will read when (a) the key K is off, (b) the key K is on? The resistance of the ammeter is negligible.
Ans-42 Current = 9/4+2 = 1.2A
(b) When key is on then
total resistance = 2 8×4/8+4 = 56/12 = 14/3 = 14/3 Ω
and current = 9 / (14/3) = 27/14 A
again current in 8 and 4 Ω resistance
i8/i4 = 4/8 = 1/2
Therefore i4 = 2/3 x 27/14 = 9/7 A

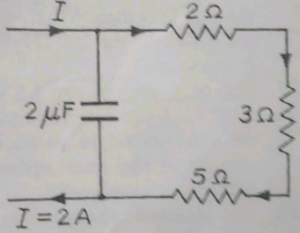

Que-43. In steady state calculate the energy stored in the capacitor included in the given circuit.
Ans-43 PD across capacitor
= i R = 2 x 10 = 20 V
energy store in capacitor
=> 1/2 CV^2 = 1/2 x 2 x 10^-6 x (20)^2
=> 4 x 10^-4 J
Que-44. Compute the reading of the ammeter A in the given network of resistors.
Ans-44 the 2 Ω resistor in row of ammeter in series with other 3 , Ω resistor in parallel
therefore net resistance
=> 2 + 2/3 = 8/3 Ω
current (reading of ammeter)
=> V/R = 2 x 3 / 8 = 0.75 Amp
Que-45. In the given diagram, calculate the resistance of the voltmeter. The ammeter reading is 2 A, the voltmeter is 120 V and R is 75 Ω.
Ans-45 Current in R = V/R = 120/75 = 1.6 A
current in voltmeter = 2 – 1.6 = 0.4 Amp
Therefore resistance of voltmeter
=> R = V/i = 120/0.4 = 300 Ω
— : End of DC Circuits and Measurements Numerical Class-12 Nootan ISC Physics Ch-6. :–
