Magnetic Force on Moving Charge Numerical
Class-12 Nootan ISC Physics Solution Ch-7 Moving Charges and Magnetic Field.
Que-17: An electron, moving with a velocity of 5 x 10^7 m/s enters a magnetic field of 1 Wb m^-2 at an angle of 30°. Calculate the force on the electron. (ISC 2006)
Ans: F = qvB sinθ
=> 1.6 x 10^-19 x 5 x 10^7 x 1 x sin 30
=> 4 x 10^-12 N
Que-18: An electron is moving vertically upwards with a speed of 2.0 x 10^8 m s^-1. What will be the magnitude and direction of the force on the electron exerted by a horizontal magnetic field of 0.50 NA^-1 m^-1 directed towards west? What will be the acceleration of the electron?
Ans: F = qvB sin90
=> 1.6 x 10^-19 x 2.0 x 10^8 x 0.5 x 1
=> 1.6 x 10^-11 N due North

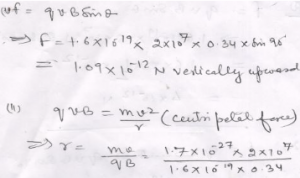

Que-19: A proton moving towards east in a horizontal plane enters a horizontal magnetic field of 0.34 T directed towards north with a speed of 2.0 x 10^-7 m/s. Calculate (i) the magnitude and direction of the force on the proton, (ii) radius of proton’s path and (iii) the lateral displacement of the proton while moving 0.20 m towards east.
Ans:
= 0.625 m
(iii) 0.20/2 x 10^7 = 10^-8 s
=> now acc in proton = qvB / m
=> 1.6 x 10^-19 x 2 x 10^7 x 0.34 x 10^-2 / 1.7 x 10^-27
=> 64 x 10^13 m/s
∴Lateral displacement s = 1/2 at²
=> 1/2 x 64 x 10^-13 x (10^-8)²
=> 32 x 10^-3 = 0.032 m
Que-20: A 2 MeV proton is moving perpendicular to a uniform magnetic field of 2.5 T. Find the force on the proton. Take mass of proton as 1.65 x 10^-27 kg.
Ans: KE of proton = 2 MeV
0.20/2 x 10^7 = 10^-8 s
=> now acc in proton = qvB / m
=> 1.6 x 10^-19 x 2 x 10^7 x 0.34 x 10^-2 / 1.7 x 10^-27
=> 64 x 10^13 m/s
∴Lateral displacement s = 1/2 at²
=> 1/2 x 64 x 10^-13 x (10^-8)²
=> 32 x 10^-3 = 0.032 m
Que-21: PQ is a long straight conductor carrying a current of 3A as shown in Fig. A proton moves with a velocity of 2 x 10^7 m/s parallel to it. Find the force acting on the proton. (ISC 2017)
Ans: Magnetic field due to wire of distance of 0.6 m
now F = qvB
=> 1.6 x 10^-19 x 2 x 10^7 x 10^-6
=> 3.2 x 10^-18 N

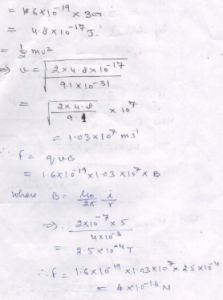

Que-22: An electron accelerated by a potential difference of 300 V, is moving at a distance of 4 mm from a long, straight wire. If a current of 5 A flows through the wire, what will be the force acting on the electron?
Ans: Energy acquired by electron = eV
