Numericals on Wheatstone Bridge and Meter Bridge
Class-12 Nootan ISC Physics Ch-6 DC Circuits and Measurements

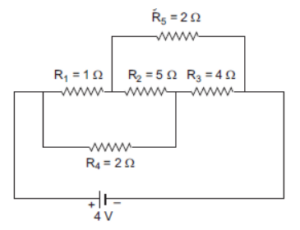

Que-26. Calculate the current drawn from the battery in the given network.
Ans-26 The equivalent circuit is shown in the figure.
The five resistors form a balanced Wheatstone’s bridge
R1/R5 = R4/R3
So, R2 is ineffective.
The effective resistance of R1 and R5 in series,
R′= R1+R5 = 1+2 = 3Ω
The effective resistance of R4 and R3 in series is
R′′ = R4+R3 = 2+4 = 6Ω
Therefore, equivalent resistance of network between A and B is
RAB = (R′R′′)/(R′+R′′) = (3×6)/(3+6) = 2Ω
Current drawn from battery,
I = E/RAB = 4/2 = 2A.

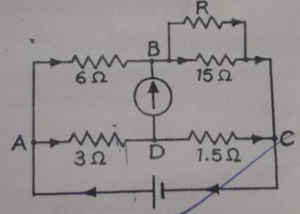

Que-27. The given circuit diagram represents balanced Wheatstone’s bridge, calculate R.
Ans-27 resistance of parallel combination = X
then according to rule of wheat stone bridge
6/X = 3/1.5 ⇒ X = 3Ω
again X is made of parallel combination of R and 15Ω
X = (Rx15)/(R+15) = 3
15R = 3R+45
15R-3R = 45
12R = 45
R = 45/12 = 3.75Ω.

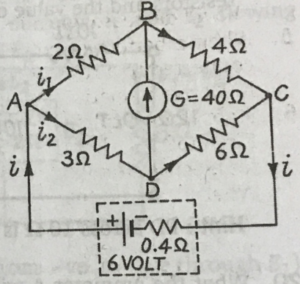

Que-28. Calculate the currents I, I1 and I2 in the given Wheatstone’s network of resistors. The internal resistance of the 6 V battery is 0.4 Ω
Ans-28 It is a balanced Wheat Stone Bridge
net resistance R = (6×9)/(6+9) = 54/15 = 3.6Ω
i = E/(R+r) = {6/(3.6+0.4)} = 6/4 = 1.5 A.
I1/I2 = 9/6 = 3/2
I1 = 3/5 x 1.5 = 0.9 A.
I2 = 1.5 – 0.9 = 0.6 A.
Que-29. The adjoining Wheatstone’s and the point C is earthed. (a) Find the potentials at points B and D. (b) If galvanometer a be connected across BD, what will be the direction of current in it? (c) For what value of the resistor DC would the bridge be balanced?
Ans-29 current through arm ABC = 60/30 = 2A
current through arm ACD = 60/10 = 6A
(a) VA – Vb =iR
60- VB =2×10
VB = 60-20 = 40V
and VA – VD = 3 x 6
60- VD = 18
VD = 60 – 18 = 42V
(b) since D is at higher potential therefore current will pass from D to B
(c) let for balance bridge R(DC)is X then by the rule of balanced wheatstone bridge
10/20 = 3/X
i.e. X = 6 Ω.
Que-30. In determining the resistance of a given wire with the help of metre bridge, the null-point is obtained distance of 40 cm on taking out 2 ohm resistance from the resistance box. What is the resistance of the wire? To obtain the null-point at a distance of 60 cm, how much resistance in ohm, will have to be taken out from the resistance box?
Ans-30 According to rule of metre bridge
2/R = 40/60
R = (2×60)/40 = 3Ω
To have null point at 60cm
Let x resistance should be taken out
X/3 = 60/40
X = (6×3)/4 = 4.5Ω
— : End of Wheatstone Bridge and Meter Bridge Numerical Class-12 Nootan ISC Physics Ch-6 DC Circuits and Measurements. :–
